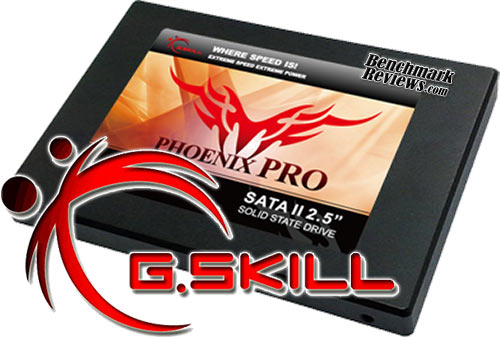

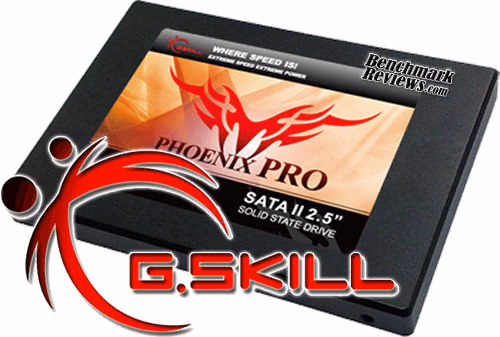

G.Skill Phoenix Pro 60G SSD Review

Solid State Drive storage devices have become the hot ticket for high-performance computer enthusiasts. Impartial towards either PC, Linux, or Apple platforms, SSDs have the power to transform slow computers into blazing-fast speed machines The SandForce SF-1200 has quickly become the de facto SSD controller for companies seeking recognition, and for good reason. The G.Skill Phoenix Pro embraces the SF-1222TA3-SBH processor to produce up to 50,000 IOPS with only 7% over-provisioning to generate maximum performance with optimal capacity. In this article, Benchmark Reviews tests the 60GB G.Skill Phoenix Pro SSD FM-25S2S-60GBP2 against some of the fastest storage solutions on the market.

SandForce is now the driving force in SSD controller technology for 2010, offering outstanding bandwidth speed and operational performance Patriot utilizes the SandForce SF-1222TA3-SBH (SF-1200) processor in their Inferno enthusiast MLC SSD series, which features hand-picked high-performance NAND flash memory modules. SandForce RAISE technology provides redundant protection for single SSD computer systems, while data is automatically secured with AES-128 encryption With transfer speeds nearly saturating the SATA-3GB/s interface, and operational IOPS performance reaching SLC-NAND levels, it makes sense for Patriot to use the new industry leader.

As of June 2010, the SandForce SF-1200 SSD controller has already found its way into many of the fastest SSDs available: ADATA S599, Corsair Force, RunCore Pro-V, Patriot Inferno, OWC Mercury Extreme Pro-RE, OCZ Vertex-2, PhotoFast G-Monster 2, OCZ Agility-2, Mach Xtreme, and now the G.Skill Phoenix Pro series. As we've discovered with our previous SandForce reviews, operational performance and SSD bandwidth speed is very similar across the spectrum. Selling virtually identical products has forced manufacturers to offer other consumer incentives, such as an extended warranty periods or custom SandForce firmware.

The biggest mistake PC hardware enthusiast make with SSDs is grading them by their speed. File transfer speed is important, but only so long as the operational IOPS performance can sustain that bandwidth under load. Benchmark Reviews tests the 60GB G.Skill Phoenix Pro SSD against some of the most popular storage devices available and demonstrates that 4K IOPS performance is more important than bandwidth speed. Additionally, Benchmark Reviews has used two similar SSDs to publish our SandForce SF1200 RAID-0 SSD Performance review.

For decades, the slowest component in any computer system was the hard drive. Most modern processors operate within approximately 1-ns (nanosecond = one billionth of one second) response time, while system memory responds between 30-90 ns. Traditional Hard Disk Drive (HDD) technology utilizes magnetic spinning media, and even the fastest spinning desktop storage products exhibit a 9,000,000 ns - or 9 ms (millisecond = one thousandth of one second) initial response time. In more relevant terms, The processor receives the command and waits for system memory to fetch related data from the storage drive. This is why any computer system is only as fast as the slowest component in the data chain; which is usually the hard drive.

The theoretical goal for achieving optimal performance is for system memory to operate as quickly as the central processor, and the storage drive to operate as fast as memory. With present technology this is an impossible task, so enthusiasts try to close the speed gaps between components as much as possible. Although system memory is up to 90x (9000%) slower than most processors, just consider that the hard drive is an added 1000x (100,000%) slower than that same memory. Essentially, these three components are as different in speed as walking is to driving and flying.

Solid State Drive technology bridges the largest gap. The difference a SSD makes to operational reaction times and program speeds is dramatic, and takes the storage drive from a slow 'walking' speed to a much faster 'driving' speed. Solid State Drive technology improves initial response times by more than 450x (45,000%) for applications and Operating System software, when compared to their HDD counterparts.

Bandwidth Speed vs Operational Performance

As we've explained in our SSD Benchmark Tests: SATA IDE vs AHCI Mode guide, Solid State Drive performance revolves around two dynamics: bandwidth speed (MB/s) and operational performance (IOPS). These two metrics work together, but one is more important than the other. Consider this analogy: operational IOPS performance determines how much cargo a ship can transport in one voyage, and the bandwidth speed is to fast the ship moves. By understanding this and applying it to SSD storage, there is a clear importance set on each variable depending on the task at hand.

For casual users, especially those with laptop or desktop computers that have been upgraded to use an SSD, the naturally quick response time is enough to automatically improve the user experience. Bandwidth speed is important, but only to the extent that operational performance meets the minimum needs of the system. If an SSD has a very high bandwidth speed but a low operational performance, it will take longer to load applications and boot the computer into Windows than if the SSD offered a higher IOPS performance.

About G.Skill International Enterprise

Established in 1989 by enthusiasts, is a leading memory manufacturer based in Taipei, Taiwan. The company's top priority is Quality and all of our products go through a series of the most rigorous tests and strict quality control processes. In addition to a committed, qualified IC testing house to examine its products, all G.Skill products are 100% tested to ensure the highest yield, reliability and quality.

Mission Statement
We are here to provide superior memory products and satisfactory services in order to keep pace with our customers' growing needs, and help our customers in adding value to their products. And we pledge we will continue to do so and enable both sides to obtain significant competitive advantages in the market segments. For more information, please visit the G.Skill website.

SandForce SF-1200 Features

SandForce SF-1200 SSD Processors enable commodity flash memory to reliably operate in cost and power sensitive client computing environments. The SF-1200 is a true single-chip SSD Processor designed for volume manufacturing and outstanding performance. Innovative DuraClass technology delivers world class reliability, endurance, performance and power consumption.

Endurance and Longevity
As each generation of flash memory evolves and the silicon geometries shrink - performance, reliability, endurance, and data retention are negatively impacted. DuraWrite technology extends the life of the SSD over conventional controllers, by optimizing writes to the flash memory and delivering a write amplification below 1, without complex DRAM caching requirements.

Performance and Power Optimization
SSDs are capable of significantly outperforming traditional HDDs, but typical controllers haven't delivered the compelling value necessary for mainstream adoption. SandForce DuraClass technology enables the SSD to maximize both the endurance and performance for the life of the drive fulfilling the promise of high speed flash memory in client computing applications and improving system performance by up to 50% as measured by the SYSmark Benchmark.

Mobile Computing Security
The SF-1200 has built in AES-128 bit encryption controllable by a configurable user password. This feature prevents would-be thieves from extracting data directly from the flash memory should they ever have access to the drive.

Data Protection and Reliability
SF-1200 SSD Processors provide up to 100x greater data protection than today's SSDs, and leading enterprise HDDs. This is a result of superior ECC protection and unique RAISE (Redundant Array of Independent Silicon Elements) technology. RAISE provides the protection and reliability of RAID on a single drive without the significant write overhead.

Phoenix Pro Specifications

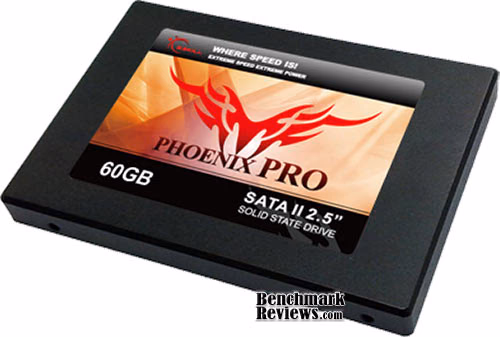

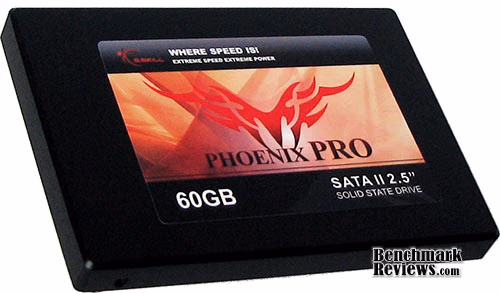

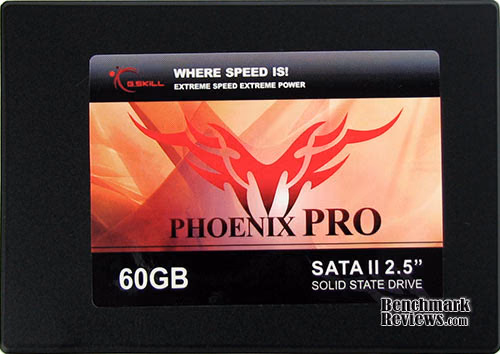

Closer Look: G.Skill Phoenix Pro

SSDs are catching on quickly because they work equally well in PC, Linux, or Apple Mac computers. For this article Benchmark Reviews is testing the G.Skill Phoenix Pro SSD, which is expected to reach speeds of 285 MB/s for sequential reads and 275 MB/s sequential writes. The FM-25S2S-60GBP2 kit is built using the SandForce SF-1222 controller with 7% over-provisioning, which means that 60GB out of 64GB NAND flash contained in this SSD are allocated for data use. On the outside G.Skill shows off their fiery Phoenix logo atop a black metal casing, which is identical to the 28% over-provisioned 'Phoenix' line.

The G.Skill Phoenix Pro SSD is best suited for performance-orientated notebook, and works extremely well for enthusiast-level desktop computer systems. Additionally, the G.Skill Phoenix Pro could also be utilized for mission-critical backups or high-abuse data server systems SandForce SF-1200 series SSDs have been designed with a focus on high-performance operational and data transfer speeds, and includes encrypted data protection and improved NAND wear-leveling through their proprietary DuraWrite technology. Although Phoenix Pro SSDs do not offer any integrated USB Mini-B port, there are several new 2.5" SATA enclosures that utilize SuperSpeed USB-3.0 standard for high-performance portable file transfers

Standard 2.5" drive bay mounting points are pre-drilled and threaded into the Phoenix Pro SSD chassis, which allows for quick upgrade or addition into any existing notebook and other compact computer system. Packaged with a 3.5" into 2.5" tray adapter, the Phoenix Pro easily installs into desktop computers as well. The mounting positions matched up to the drive bracket on my notebook computer, and after only a few minutes I was booting from a restored Windows 7 System Image from Disc Recovery without a hitch.

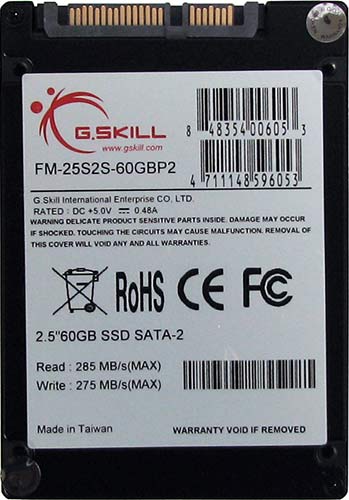

Unlike most Hard Disk Drive (HDD) storage products, SSDs are nearly impervious to impact damage and do not require (or benefit from) any kind of special vibration dampening or shock-proof enclosures G.Skill utilizes a standard two-piece metal enclosure for their Phoenix Pro series, which reveals the internal components after removing four small counter-sunk Phillips-head screws located at the bottom of this SSD. G.Skill SSDs have two 'Warranty Void' labels attached to each side of the chassis, and removing the enclosure cover will remove consumer protection with it. Benchmark Reviews will reveal all of the internal components on our next section anyway, so just be patient and save your product warranty.

Thanks to hand-picked NAND flash memory modules paired to the SandForce SF-1222 SSD controller, the G.Skill Phoenix Pro Solid State Drive suggests transfer speeds of 285/275 MBps read/write for high-performance enthusiasts. Now that you're acquainted with the basic exterior features of this SSD, it's time to peek inside the metal enclosure and inspect the internal components...

SandForce SF-1200 SSD Controller

The SandForce SF-1200 SATA-3GBps controller is new to the industry, but many manufacturers are already hailing it as the replacement for Indilinx's industry-leading Barefoot processor. Both are second-generation SATA products limited to 3.0 GB/s transfer speeds, and both offer similar specifications. SandForce adds DuraClass technology to their SF-1200 processor, which claims to provide best-in-class endurance, performance, and lower power consumption. DuraWrite technology extends the endurance of MLC-NAND memory by providing at least five year lifecycles measured with 3000-5000 cycle MLC flash. Additionally, SandForce RAISE technology provides RAID-like protection for single SSD computer systems, and data is secured with AES-128 automatic encryption.

SandForce has hit the 2010 SSD industry with full force, much the same way that Indilinx did back in 2009. Finished-goods companies can utilize the SandForce SF1200 processor in their own product line, which then receives a "SandForce Driven" badge. The SandForce SF-1222 processor is presently available in the ADATA S599, Corsair Force, RunCore Pro-V, Patriot Inferno, OWC Mercury Extreme Pro-RE, G.Skill Phoenix Pro, OCZ Vertex-2, PhotoFast G-Monster 2, OCZ Agility-2, and Mach Xtreme SSD series.

From the view above the printed circuit board (PCB), it doesn't look like there's anything dramatically innovative on the SandForce Solid State Drive. Eight flash NAND modules make a horseshoe around the SandForce SF-1200 SSD processor, and plenty of electronics fill in the remaining space atop the printed circuit board. But once the SandForce SSD board is turned to expose the underside, the difference is obvious: SandForce has used their DuraClass technology to remove the DRAM buffer.

The 2nd-generation SATA-3.0GBps SandForce SF-1222TA3-SBH processor is part of their SF-1200 family of SSD controller chips, and SSDs will utilize either the SF-1200 processor for retail consumers or SF-1500 for enterprise devices. All SandForce SSD controllers offer native TRIM support in Microsoft Windows-7, Native Command Queuing (NCQ) with 32 command slots, and Self-Monitoring, Analysis, and Reporting Technology (SMART) command set. While not directly important to transfer speeds or operational performance, SandForce utilizes a Tensilica Diamond Core DC_570T CPU inside the SF-1200 processor.

Another benefit of SandForce's SF-1200 architecture is that the SSD keeps all information on the NAND grid and removes the need for a separate cache buffer DRAM module. The result is a faster transaction, albeit at the expense of total storage capacity. SandForce SSDs utilize over-provisioning technology, which allocates a portion of NAND for data storage and the remainder reserved for transaction and cache buffer space. SandForce has also marketing custom firmware to the finished-goods companies that sell their SSDs, which remove performance restrictions.

The SF-1200 SSD processor provides ECC data protection and includes SandForce's unique RAISE (Redundant Array of Independent Silicon Elements) technology. RAISE provides the protection and reliability of RAID on a single SSD drive, thanks to flash architecture, without the significant write overhead of parity. The SandForce DuraClass technology automatically stores data in AES-128 encrypted format, preventing data extraction directly from the physical flash memory modules.

Sixteen multi-layer cell Intel 29F64G08CAMDB flash NAND modules are joined to the SandForce SF-1200 controller On professional-level 28% over-provisioned SandForce SSDs, these NAND modules may combine for 128GB of physical storage space yet only 100GB of this capacity is designated for data Consumer-level SandForce SSDs receive 7% over-provisioning and 128GB devices will yield 120GB of usable storage space.

Because the SandForce SF-1200 SSD processor inside the many SSDs is a non-exclusive component available market-wide, Benchmark Reviews expects to see many new solid state storage products using this controller in the near future. Please continue on for details and performance results for this Solid State Drive...

SSD Testing Methodology

Solid State Drives have traveled a long winding course to finally get where they are today. Up to this point in technology, there have been several key differences separating Solid State Drives from magnetic rotational Hard Disk Drives. While the DRAM-based buffer size on desktop HDDs has recently reached 32 MB and is ever-increasing, there is still a hefty delay in the initial response time. This is one key area in which flash-based Solid State Drives continually dominates because they lack moving parts to "get up to speed".

However the benefits inherent to SSDs have traditionally fallen off once the throughput begins, even though data reads or writes are executed at a high constant rate whereas the HDD tapers off in performance. This makes the average transaction speed of a SSD comparable to the data burst rate mentioned in HDD tests, albeit usually lower than the HDD's speed.

Comparing a Solid State Disk to a standard Hard Disk Drives is always relative; even if you're comparing the fastest rotational spindle speeds. One is going to be many times faster in response (SSDs), while the other is usually going to have higher throughput bandwidth (HDDs). Additionally, there are certain factors which can affect the results of a test which we do our best to avoid.

SSD Testing Disclaimer

Early on in our SSD coverage, Benchmark Reviews published an article which detailed Solid State Drive Benchmark Performance Testing. The research and discussion that went into producing that article changed the way we now test SSD products. Our previous perceptions of this technology were lost on one particular difference: the wear leveling algorithm that makes data a moving target. Without conclusive linear bandwidth testing or some other method of total-capacity testing, our previous performance results were rough estimates at best.

Our test results were obtained after each SSD had been prepared using DISKPART or Sanitary Erase tools. As a word of caution, applications such as these offer immediate but temporary restoration of original 'pristine' performance levels. In our tests, we discovered that the maximum performance results (charted) would decay as subsequent tests were performed. SSDs attached to TRIM enabled Operating Systems will benefit from continuously refreshed performance, whereas older O/S's will require a garbage collection (GC) tool to avoid 'dirty NAND' performance degradation.

It's critically important to understand that no software for the Microsoft Windows platform can accurately measure SSD performance in a comparable fashion. Synthetic benchmark tools such as HD Tach and PCMark are helpful indicators, but should not be considered the ultimate determining factor. That factor should be measured in actual user experience of real-world applications. Benchmark Reviews includes both bandwidth benchmarks and application speed tests to present a conclusive measurement of product performance.

Test System

Motherboard: Gigabyte GA-X58A-UD7 (Intel X58-Express)
Processor: Intel Core i7-920 BX80601920 @ 2.667 GHz
System Memory: 6GB Triple-Channel DDR3 1600MHz CL6-6-6-18
SATA 3Gb/s Storage HBA: Integrated Intel ICH10R Controller
• AHCI mode - Intel Rapid Storage Technology Driver 9.6.0.1014
SATA 6Gb/s Storage HBA: Integrated Marvell SE9128 Controller
• AHCI mode - Marvell Magni Driver Marvell Magni Driver 1.0.0.1036
Operating System: Microsoft Windows 7 Ultimate Edition 64-Bit

Drive Hardware Tested

The following storage hardware has been used in our benchmark performance testing, and may be included in portions of this article:

• ACARD ANS-9010 DDR2 SATA RAM-Drive
• ADATA S599 100GB SATA MLC SSD
• Corsair X256 CMFSSD-256D1 256GB SATA MLC SSD (Firmware version 1.1)
• Corsair Nova V128 CMSSSD-V128GB2 SATA MLC SSD
• Corsair Force F100 CSSD-F100GB2 SATA MLC SSD
• Crucial RealSSD-C300 CTFDDAC256MAG-1G1 256GB SATA 6Gb/s MLC SSD
• G.Skill Phoenix Pro 60GB SATA MLC SSD FM-25S2S-60GBP2
• Intel X25-E Extreme SSDSA2SH032G1GN SATA SLC SSD
• Kingston SSDNowV+ SNVP325-S2 128GB SATA MLC SSD
• LiteOn LA-32M1S Strong-Page 32GB MLC SSD
• OCZ Agility OCZSSD2-1AGT120G 120GB SATA MLC SSD (Firmware version 1.5)
• OCZ Agility-EX OCZSSD2-1AGTEX60G 64GB SATA SLC (Firmware version 1.5)
• OCZ Vertex OCZSSD2-1VTX120G 120GB SATA SSD (Firmware v1.5)
• OCZ Vertex-EX OCZSSD2-1VTX120G 120GB SATA SLC SSD (Firmware version 1.5)
• OCZ Vertex Turbo OCZSSD2-1VTXT120G 120GB SATA SSD (Firmware version 1.5)
• OWC Mercury Extreme Pro-RE SSDMXRE100 100GB MLC SSD
• Patriot Inferno PI100GS25SSDR 100GB MLC SSD
• RunCore Pro-V RCP-V-S2520-MCN 200GB SATA SLC SSD
• Seagate Momentus-XT Solid State Hybrid Drive ST95005620AS
• Seagate Barracuda-XT ST32000641AS 2TB 7200RPM SATA 6Gb/s Hard Drive
• Western Digital VelociRaptor WD3000HLFS 300GB 10,000 RPM SATA Hard Disk Drive
• WD SiliconEdge-Blue SSC-D0256SC-2100 256GB SATA SSD

Test Tools

AS SSD Benchmark 1.5.3784.37609: Multi-purpose speed and operational performance test
• ATTO Disk Benchmark 2.46: Spot-tests static file size chunks for basic I/O bandwidth
• Iometer 2008.06.28 by Intel Corporation: Tests IOPS performance and I/O response time
• Lavalys EVEREST Ultimate Edition 5.50: Disk Benchmark component tests linear read and write bandwidth speeds
• CrystalDiskMark 3.0.0 by Crystal Dew World: Sequential speed benchmark spot-tests various file size chunks

Test Results Disclaimer

This article utilizes benchmark software tools to produce operational IOPS performance and bandwidth speed results. Each test was conducted in a specific fashion, and repeated for all products. These test results are not comparable to any other benchmark application, neither on this website or another, regardless of similar IOPS or MB/s terminology in the scores. The test results in this project are only intended to be compared to the other test results conducted in identical fashion for this article.

AS-SSD Benchmark

Alex Schepeljanski of Alex Intelligent Software develops the free AS SSD Benchmark utility for testing storage devices. The AS SSD Benchmark tests sequential read and write speeds, input/output operational performance, and response times. Because this software receives frequent updates, Benchmark Reviews recommends that you compare results only within the same version family.

Beginning with sequential read and write performance, the 60GB G.Skill Phoenix Pro Solid State Drive produced 198.58 MB/s read speed, and 95.00 MB/s write performance. The sequential file transfer speeds have traditionally been low with this benchmark tool, especially for SandForce controllers, which is why we will concentrate on the operational IOPS performance for this section.

Single-threaded 4K IOPS performance delivers 21.54 MB/s read and 61.65 MB/s write, which is among the highest results we've recorded. Similarly, the 64-thread 4K reads recorded 107.29 MB/s while write performance was 91.06... both earning the G.Skill Phoenix Pro SSD a spot among the top results in our charts.

Displayed in the chart below, the 64-thread 4KB IOPS performance results for several enthusiast-level storage products illustrates which products offer the best operation under load:

Drive Hardware

• ADATA S599 100GB SATA MLC SSD
• Corsair Nova V128 CMSSSD-V128GB2 SATA MLC SSD
• Corsair Force F100 CSSD-F100GB2 SATA MLC SSD
• Crucial RealSSD-C300 CTFDDAC256MAG-1G1 256GB SATA 6Gb/s MLC SSD
• G.Skill Phoenix Pro 60GB SATA MLC SSD FM-25S2S-60GBP2
• Kingston SSDNowV+ SNVP325-S2 128GB SATA MLC SSD
• LiteOn LA-32M1S Strong-Page 32GB MLC SSD
• OCZ Agility OCZSSD2-1AGT120G 120GB SATA MLC SSD (Firmware version 1.5)
• OCZ Vertex Turbo OCZSSD2-1VTXT120G 120GB SATA SSD (Firmware version 1.5)
• OWC Mercury Extreme Pro-RE SSDMXRE100 100GB MLC SSD
• Patriot Inferno PI100GS25SSDR 100GB MLC SSD
• RunCore Pro-V RCP-V-S2520-MCN 200GB SATA SLC SSD
• Seagate Momentus-XT Solid State Hybrid Drive ST95005620AS
• Seagate Barracuda-XT ST32000641AS 2TB 7200RPM SATA 6Gb/s Hard Drive
• Western Digital VelociRaptor WD3000HLFS 300GB 10,000 RPM SATA Hard Disk Drive
• WD SiliconEdge-Blue SSC-D0256SC-2100 256GB SATA SSD

In the next section, Benchmark Reviews tests transfer rates using ATTO Disk Benchmark.

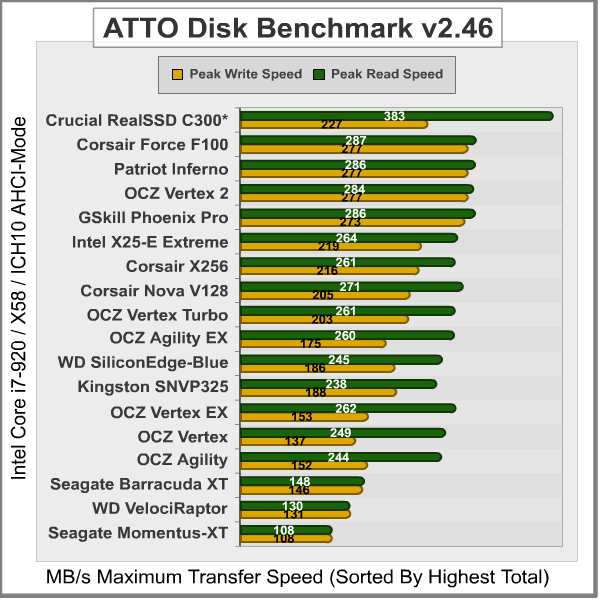

ATTO Disk Benchmark

The ATTO Disk Benchmark program is free, and offers a comprehensive set of test variables to work with. In terms of disk performance, it measures interface transfer rates at various intervals for a user-specified length and then reports read and write speeds for these spot-tests. There are some minor improvements made to the 2.46 version of the program that allow for test lengths up to 2GB, but all of our benchmarks are conducted with 256MB total length. ATTO Disk Benchmark requires that an active partition be set on the drive being tested. Please consider the results displayed by this benchmark to be basic bandwidth speed performance indicators.

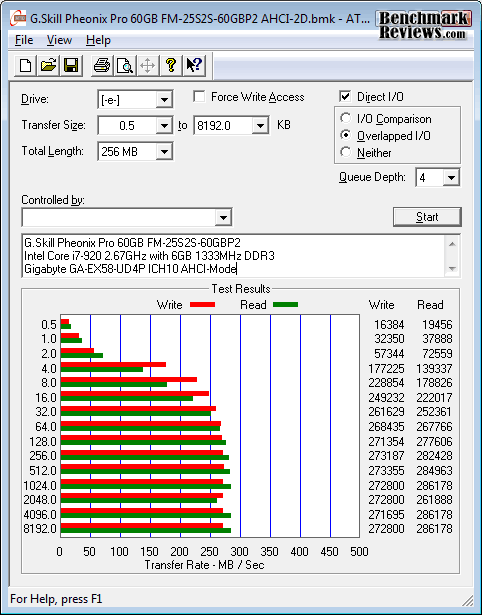

Our basic bandwidth speed tests begin with the G.Skill Phoenix Pro SSD connected to the Intel ICH10 controller in AHCI mode, as the ATTO Disk Benchmark tools performs file transfers ranging from 0.5 KB to 8192 KB. The 60GB model we received reveals 286 MBps maximum read speed that plateaus from 128-8192 KB file chunks, and 273 MBps peak write bandwidth plateaus from 64-8192 KB. These both exceed SandForce specifications, and roughly match G.Skill's 285/275 MBps manufacturer specifications.

Drive Hardware

• ADATA S599 100GB SATA MLC SSD
• Corsair Nova V128 CMSSSD-V128GB2 SATA MLC SSD
• Corsair Force F100 CSSD-F100GB2 SATA MLC SSD
• Crucial RealSSD-C300 CTFDDAC256MAG-1G1 256GB SATA 6Gb/s MLC SSD
• G.Skill Phoenix Pro 60GB SATA MLC SSD FM-25S2S-60GBP2
• Intel X25-E Extreme SSDSA2SH032G1GN SATA SLC SSD
• Kingston SSDNowV+ SNVP325-S2 128GB SATA MLC SSD
• LiteOn LA-32M1S Strong-Page 32GB MLC SSD
• OCZ Agility OCZSSD2-1AGT120G 120GB SATA MLC SSD (Firmware version 1.5)
• OCZ Agility-EX OCZSSD2-1AGTEX60G 64GB SATA SLC (Firmware version 1.5)
• OCZ Vertex OCZSSD2-1VTX120G 120GB SATA SSD (Firmware v1.5)
• OCZ Vertex-EX OCZSSD2-1VTX120G 120GB SATA SLC SSD (Firmware version 1.5)
• OCZ Vertex Turbo OCZSSD2-1VTXT120G 120GB SATA SSD (Firmware version 1.5)
• OWC Mercury Extreme Pro-RE SSDMXRE100 100GB MLC SSD
• Patriot Inferno PI100GS25SSDR 100GB MLC SSD
• RunCore Pro-V RCP-V-S2520-MCN 200GB SATA SLC SSD
• Seagate Momentus-XT Solid State Hybrid Drive ST95005620AS
• Seagate Barracuda-XT ST32000641AS 2TB 7200RPM SATA 6Gb/s Hard Drive
• Western Digital VelociRaptor WD3000HLFS 300GB 10,000 RPM SATA Hard Disk Drive
• WD SiliconEdge-Blue SSC-D0256SC-2100 256GB SATA SSD

In the next section, Benchmark Reviews tests sequential performance using the CrystalDiskMark 3.0 software tool...

CrystalDiskMark 3.0 Tests

CrystalDiskMark 3.0 is a file transfer and operational bandwidth benchmark tool from Crystal Dew World that offers performance transfer speed results using sequential, 512KB random, and 4KB random samples. For our test results chart below, the 4KB 32-Queue Depth read and write performance was measured using a 1000MB space. CrystalDiskMark requires that an active partition be set on the drive being tested, and all drives are formatted with NTFS on the Intel ICH10 controller set to AHCI-mode. Benchmark Reviews uses CrystalDiskMark to illustrate operational IOPS performance with multiple threads. In addition to our other tests, this benchmark allows us to determine operational bandwidth under heavy load.

Our tests of the 60GB G.Skill Phoenix Pro SSD were each consistent, but only the maximum speeds were charted below. Sequential tests on the Phoenix Pro SSD produced a maximum read speed of 203.8 MB/s, while the write speed was a mere 58.34 MB/s (although 100.4 MB/s was reported in one test). The sequential file transfer speeds have traditionally been low with this benchmark tool, especially for SandForce controllers, which is why we will concentrate on the operational IOPS performance for this section.

CrystalDiskMark 3.0 reported 512K results of 194.9 MB/s read and only 55.52 MB/s write performance (99.55 MB/s was reported in one test). 4K tests produced 22.02 read and 55.65 write performance. 4KB queue depth 32 IOPS is one area where SandForce-based SSDs truly excel, and performance for the 60GB G.Skill Phoenix Pro trails the other SandForce SSDs.

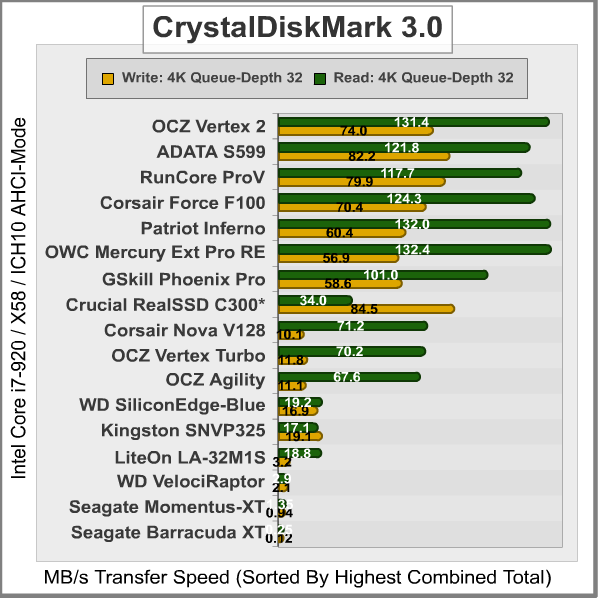

Displayed in the chart below, the maximum 4KB queue depth 32 IOPS performance results for several enthusiast-level storage products illustrate which products offer the best operation under load:

Drive Hardware

• ADATA S599 100GB SATA MLC SSD
• Corsair Nova V128 CMSSSD-V128GB2 SATA MLC SSD
• Corsair Force F100 CSSD-F100GB2 SATA MLC SSD
• Crucial RealSSD-C300 CTFDDAC256MAG-1G1 256GB SATA 6Gb/s MLC SSD
• G.Skill Phoenix Pro 60GB SATA MLC SSD FM-25S2S-60GBP2
• Kingston SSDNowV+ SNVP325-S2 128GB SATA MLC SSD
• LiteOn LA-32M1S Strong-Page 32GB MLC SSD
• OCZ Agility OCZSSD2-1AGT120G 120GB SATA MLC SSD (Firmware version 1.5)
• OCZ Vertex Turbo OCZSSD2-1VTXT120G 120GB SATA SSD (Firmware version 1.5)
• OWC Mercury Extreme Pro-RE SSDMXRE100 100GB MLC SSD
• Patriot Inferno PI100GS25SSDR 100GB MLC SSD
• RunCore Pro-V RCP-V-S2520-MCN 200GB SATA SLC SSD
• Seagate Barracuda-XT ST32000641AS 2TB 7200RPM SATA 6Gb/s Hard Drive
• Western Digital VelociRaptor WD3000HLFS 300GB 10,000 RPM SATA Hard Disk Drive
• WD SiliconEdge-Blue SSC-D0256SC-2100 256GB SATA SSD

Iometer IOPS Performance

Iometer is an I/O subsystem measurement and characterization tool for single and clustered systems. Iometer does for a computer's I/O subsystem what a dynamometer does for an engine: it measures performance under a controlled load. Iometer was originally developed by the Intel Corporation and formerly known as "Galileo". Intel has discontinued work on Iometer, and has gifted it to the Open Source Development Lab (OSDL).

Iometer is both a workload generator (that is, it performs I/O operations in order to stress the system) and a measurement tool (that is, it examines and records the performance of its I/O operations and their impact on the system). It can be configured to emulate the disk or network I/O load of any program or benchmark, or can be used to generate entirely synthetic I/O loads. It can generate and measure loads on single or multiple (networked) systems.

To measure random I/O response time as well as total I/O's per second, Iometer is set to use 4KB file size chunks over a 100% random sequential distribution at a queue depth of 32 outstanding I/O's per target. The tests are given a 50% read and 50% write distribution. While this pattern may not match traditional 'server' or 'workstation' profiles, it illustrates a single point of reference relative to our product field.

The chart below illustrates combined random read and write IOPS over a 120-second Iometer test phase, where highest I/O total is preferred:

From the onset, SandForce SSDs clearly outperform the competition when tested which a larger queue depth. While G.Skill's product website displays an image of their Iometer results reaching nearly 50,118 IOPS, there's no telling what settings were used for this test. In our own Iometer tests, which use 32 outstanding I/O's per target and a random 50/50 read/write distribution, only the 'unrestricted' SandForce SSDs approach 50,000 IOPS. These SSDs demonstrate a much higher performance level due to the custom firmware they've implemented, whereas the others each use 'locked' standard-release SandForce firmware that offers consistently identical results. Benchmark Reviews discusses this topic in more detail in our SandForce SF-1200 SSD Firmware Comparison article.

Drive Hardware

• ADATA S599 100GB SATA MLC SSD
• Corsair Nova V128 CMSSSD-V128GB2 SATA MLC SSD
• Corsair Force F100 CSSD-F100GB2 SATA MLC SSD
• Crucial RealSSD-C300 CTFDDAC256MAG-1G1 256GB SATA 6Gb/s MLC SSD
• G.Skill Phoenix Pro 60GB SATA MLC SSD FM-25S2S-60GBP2
• Kingston SSDNowV+ SNVP325-S2 128GB SATA MLC SSD
• LiteOn LA-32M1S Strong-Page 32GB MLC SSD
• OCZ Agility OCZSSD2-1AGT120G 120GB SATA MLC SSD (Firmware version 1.5)
• OCZ Agility-EX OCZSSD2-1AGTEX60G 64GB SATA SLC (Firmware version 1.5)
• OCZ Vertex Turbo OCZSSD2-1VTXT120G 120GB SATA SSD (Firmware version 1.5)
• OWC Mercury Extreme Pro-RE SSDMXRE100 100GB MLC SSD
• Patriot Inferno PI100GS25SSDR 100GB MLC SSD
• RunCore Pro-V RCP-V-S2520-MCN 200GB SATA SLC SSD
• Seagate Momentus-XT Solid State Hybrid Drive ST95005620AS
• Seagate Barracuda-XT ST32000641AS 2TB 7200RPM SATA 6Gb/s Hard Drive
• WD SiliconEdge-Blue SSC-D0256SC-2100 256GB SATA SSD

In our next section, we test linear read and write bandwidth performance and compare its speed against several other top storage products using EVEREST Disk Benchmark. Benchmark Reviews feels that linear tests are excellent for rating SSDs, however HDDs are put at a disadvantage with these tests whenever capacity is high.

EVEREST Disk Benchmark

Many enthusiasts are familiar with the Lavalys EVEREST benchmark suite, but very few are aware of the Disk Benchmark tool available inside the program. The EVEREST Disk Benchmark performs linear read and write bandwidth tests on each drive, and can be configured to use file chunk sizes up to 1MB (which speeds up testing and minimizes jitter in the waveform). Because of the full sector-by-sector nature of linear testing, Benchmark Reviews endorses this method for testing SSD products, as detailed in our Solid State Drive Benchmark Performance Testing article. However, Hard Disk Drive products suffer a lower average bandwidth as the capacity draws linear read/write speed down into the inner-portion of the disk platter. EVEREST Disk Benchmark does not require a partition to be present for testing, so all of our benchmarks are completed prior to drive formatting.

The high-performance storage products tested with EVEREST Disk Benchmark are connected to the Intel ICH10 controller on the Gigabyte GA-X58A-UD7 motherboard. Using the 1MB block size, read performance of the G.Skill Phoenix Pro 60GB SSD measured an average 266.4 MBps with an identical maximum peak of 266.4 MBps. Linear write-to tests were next...

Linear disk benchmarks are superior bandwidth speed tools in my opinion, because they scan from the first physical sector to the last. A side affect of many linear write-performance test tools is that the data is erased as it writes to every sector on the drive. Normally this isn't an issue, but it has been shown that partition table alignment will occasionally play a role in overall SSD performance (HDDs don't suffer this problem).

The waveform chart below illustrates how the integrated buffer manages file transfers, and makes linear write performance appears relatively even. The results seen here are still relatively consistent compared to most other SSD products we've tested in the past. The G.Skill Phoenix Pro 60GB SSD recorded an average linear write-to speed of 256.5 MBps, with a maximum performance of 260.8 MBps.

The chart below shows the average linear read and write bandwidth speeds for a cross-section of SATA storage devices tested with EVEREST:

Linear tests are an important tool for comparing bandwidth speed between storage products - although HDD products suffer performance degradation over the span of their areal storage capacity. Linear bandwidth certainly benefits the Solid State Drive, since there's very little fluctuation in transfer speed. This is because Hard Disk Drive products decline in performance as the spindle reaches the inner-most sectors on the magnetic platter, away from the fast outer edge.

Drive Hardware

• ACARD ANS-9010 DDR2 SATA RAM-Drive
• ADATA S599 100GB SATA MLC SSD
• Corsair X256 CMFSSD-256D1 256GB SATA MLC SSD (Firmware version 1.1)
• Corsair Nova V128 CMSSSD-V128GB2 SATA MLC SSD
• Corsair Force F100 CSSD-F100GB2 SATA MLC SSD
• Crucial RealSSD-C300 CTFDDAC256MAG-1G1 256GB SATA 6Gb/s MLC SSD
• G.Skill Phoenix Pro 60GB SATA MLC SSD FM-25S2S-60GBP2
• Intel X25-E Extreme SSDSA2SH032G1GN SATA SLC SSD
• Kingston SSDNowV+ SNVP325-S2 128GB SATA MLC SSD
• LiteOn LA-32M1S Strong-Page 32GB MLC SSD
• OCZ Agility OCZSSD2-1AGT120G 120GB SATA MLC SSD (Firmware version 1.5)
• OCZ Agility-EX OCZSSD2-1AGTEX60G 64GB SATA SLC (Firmware version 1.5)
• OCZ Vertex OCZSSD2-1VTX120G 120GB SATA SSD (Firmware v1.5)
• OCZ Vertex-EX OCZSSD2-1VTX120G 120GB SATA SLC SSD (Firmware version 1.5)
• OCZ Vertex Turbo OCZSSD2-1VTXT120G 120GB SATA SSD (Firmware version 1.5)
• OWC Mercury Extreme Pro-RE SSDMXRE100 100GB MLC SSD
• Patriot Inferno PI100GS25SSDR 100GB MLC SSD
• RunCore Pro-V RCP-V-S2520-MCN 200GB SATA SLC SSD
• Seagate Momentus-XT Solid State Hybrid Drive ST95005620AS
• Seagate Barracuda-XT ST32000641AS 2TB 7200RPM SATA 6Gb/s Hard Drive
• Western Digital VelociRaptor WD3000HLFS 300GB 10,000 RPM SATA Hard Disk Drive
• WD SiliconEdge-Blue SSC-D0256SC-2100 256GB SATA SSD

In the next section, I share my final thoughts on the struggle between SSD and HDD technology before delivering my conclusion and final product rating.

HDD vs Hybrid Drive vs SSD

It's been the same argument for over two years now: SSDs offer the best performance, but HDDs still offer the best capacity and price. Now that Solid State Hybrid drives are available, that argument changes. While the optimal blend of bandwidth speed, operational performance, storage capacity, and value has yet to be delivered, products like the Seagate Momentus-XT offer an ultra-affordable start in the right direction Installed as a primary drive for notebook and value-conscious enthusiasts, the Solid State Hybrid Drive delivers up high-capacity storage space while starting Windows and opening programs like a SSD.

The last days of old technology are always better than the first days of new technology. Never has this saying been more true than with the topic of storage technology, specifically in regard to the introduction of Solid State Drive technology a few years ago. The only things standing in the way of widespread Solid State Drive (SSD) adoption are high storage capacity and affordable price of Hard Disk Drive (HDD) devices. Because NAND flash-based SSD technology costs more per gigabyte of capacity than traditional magnetic hard drives, the benefits of immediate response time, transfer speeds, and operational input/output performance often get overlooked. Like most consumer products, it wasn't a question of how much improvement was evident in the new technology, it was price. I'll discuss product costs more in just a moment, but for now consider how each new series of SSD product employs greater performance than the one before it, convincing would-be consumers into waiting for the right time to buy.

There's also a gray area surrounding SSD performance benchmarks that has me concerned. You might not know this, but SSDs can be very temperamental towards the condition of their flash NAND. My experience testing dozens of Solid State Drives is that a freshly cleaned device (using an alignment tool) will always outperform the same device once it's been formatted and used. A perfect example are Indilinx Barefoot-based SSDs, which suffers severely degraded performance when writing to 'dirty' flash NAND. The reason that all of this will matter is simple: the performance results reported to consumers in product reviews (such as this one) often report the very best performance scores, and the process used to obtain these results is not applicable to real-world usage. This is where garbage collection techniques such as TRIM become important, so that end-users will experience the same performance levels as we do in our tests.

Garbage Collection (GC) is the current solution for keeping flash NAND in 'clean' condition, while maintaining optimal performance. Windows 7 offers native TRIM support, and most retail SSDs also include this special GC function or at least offer a firmware update that brings the drive up-to-date. For anyone using an Operating System or SSD that does not offer Garbage Collection functionality, you'll be using 'dirty' flash NAND modules and suffering sub-optimal performance for each write-to request. A few SSD manufacturers offers free tools to help restore peak-level performance by scheduling GC to 'clean' used NAND sectors, but these tools add excessive wear to the NAND the same way disk defragmenting tools would. SLC flash modules may resist wear much better than MLC counterparts, but come at the expense of increased production cost. The best solution is a more durable NAND module that offers long-lasting SLC benefits at the cost of MLC construction. Adoption is further stalled because keen consumers aware of this dilemma further continue their delay into the SSD market.

Getting back to price, the changes in cost per gigabyte have come as often as changes to the technology itself. At their inception, high-performance models such the 32GB MemoRight GT cost $33 per gigabyte while the entry-level 32GB Mtron MOBI 3000 sold for $14 per gigabyte. While an enjoyable decline in NAND component costs forced consumer SSD prices down low in 2009, the price of SSD products has been on the rise during 2010. Nevertheless, Solid State Drives continue to fill store shelves despite price or capacity, and there are a few SSD products now costing only $2.03 per gigabyte. Although the performance may justify the price, which is getting dangerously close to the $0.79 per gigabyte for the WD VelociRaptor hard drive, costs may still close some buyers out of the market. Price notwithstanding, the future is in SSD technology - or possibly a SSD hybrid - and the day when HDDs are obsolete is nearing.

G.Skill Phoenix Pro Conclusion

Although the rating and final score mentioned in this conclusion are made to be as objective as possible, please be advised that every author perceives these factors differently at various points in time. While we each do our best to ensure that all aspects of the product are considered, there are often times unforeseen market conditions and manufacturer changes which occur after publication that could render our rating obsolete. Please do not base any purchase solely on our conclusion, as it represents our product rating for the sample received which may differ from retail versions. Benchmark Reviews begins our conclusion with a short summary for each of the areas that we rate.

Our performance rating considers how effective the G.Skill Phoenix Pro SSD performs in operations against direct competitor SATA storage solutions. For reference, SandForce specifies the SF-1200 at 260 MB/s read and write, while G.Skill increases performance expectations to 285 MB/s read and 275 write. In our benchmark tests, the 60GB G.Skill Phoenix Pro performed at or above this rating. The G.Skill Phoenix Pro SSD delivered 286/273 MBps peak read and writes speeds using ATTO Disk Benchmark SSD speed tests with Everest Disk Benchmark produced 266/257 MB/s, making this one of the fastest SATA-3GBps MLC SSD's Benchmark Reviews has ever tested. Operational performance was very good in Iometer compared to other SSDs, and proved that G.Skill's investment into SandForce's custom firmware has paid off. The retail G.Skill Phoenix Pro SSD sent to us for testing uses SandForce 310A13F0 firmware release, and IOPS performance was higher than most other SF-1222 based SSDs. Enthusiasts can expect high operational speeds and functionality for demanding applications.

Solid State Drives are low-visibility products: you see them just long enough to install and then they're forgotten. Like their Hard Disk Drive counterparts, Solid State Drives are meant to place function before fashion. Anything above and beyond a simple metal shell is already more than what's expected in terms of the appearance G.Skill has created an unique look with the label on their Phoenix series, but the black metal chassis is no different than the rest of the industry. As solid state controllers become faster and more advanced, heat dissipation through the enclosure walls may demand that chassis designs become more beneficial than they previously needed to be.

Construction is probably the strongest feature credited to any solid state product line, and the G.Skill Phoenix Pro series is no exception. Solid State Drives are by nature immune to most abuses because of their architecture and technology, but the hard metal shell adds a superfluous level of protection. The G.Skill Phoenix Pro provides a three-year manufacturer warranty If a G.Skill Phoenix SSD product does fail during the 3-year warranty period, the end-user must complete an RMA form and wait for a returns authorization number before shipping the item back at their own expense. US/Canadian users may contact This e-mail address is being protected from spam bots, you need JavaScript enabled to view it by email for support, or call 1-909-598-6860 for telephone support.

Benchmark Reviews has tested the G.Skill Phoenix Pro SSD against many of its closest competitors, and the performance results were impressive by their own merits. In fact, the G.Skill Phoenix Pro outperformed all other SandForce-based SSDs in bandwidth speed tests with Everest and ATTO. Although IOPS performance was impressive, our tests didn't match the manufacturer's advertised 50K IOPS write specification. High-performance computer enthusiasts will enjoy the a noteworthy 0.16 ms response time, which assures a nearly-instant reactions when called upon. Based on the SATA-3.0 SandForce SF-1222TA3-SBH processor, the G.Skill Phoenix Pro-series delivers native TRIM garbage collection (in Windows 7) and SMART support with impressive transfer speeds. More importantly, SandForce DuraClass technology adds their proprietary RAISE and DuraWrite features not available to other SSDs, and the end result is a product that could last up to five times longer with less wear on NAND flash modules due to 7% over-provisioning.

As of July 2010 the 60GB G.Skill Phoenix Pro (model FM-25S2S-60GBP2) sells at NewEgg for $199.99 ($3.33/GB), making it the most expensive SandForce SSD at this capacity. This price adds a small premium over the $189 ($3.15/GB) G.Skill Phoenix, which offers the exact same capacity and speed but is not advertised for 50,000 IOPS. The larger-capacity 120GB G.Skill Phoenix Pro (model FM-25S2S-120GBP2) sells for $359 ($2.99/GB), and is also the most expensive 120GB SandForce SSD.

SandForce SSDs are taking the storage market by storm, which could help the G.Skill Phoenix Pro dominate the high-performance PC hardware segment. Not only are SandForce-based Solid State Drives extremely fast, but more importantly they're capable of SLC-level operational performance I/O and durability. The G.Skill Phoenix Pro series builds from the powerful SandForce SF-1222 solid state processor, which brings innovation to the SSD industry by prolonging MLC NAND flash module lifetime and delivering RAID-like data redundancy. When one SandForce product is physically identical to another, the overall value depends on price, warranty, and customer support. If you're price shopping, a quick stroll through our other recent SandForce SF-1200 product reviews will reveal other SSD options.

While the G.Skill Phoenix Pro proved to be the fastest SSD in terms of bandwidth speed, its 310A13F0 firmware also helped dominate several other SF1200 SSDs with high operational IOPS performance. At 60GB, this is likely to become someone's O/S boot drive, which means that the 4K IOPS performance is a lot more important than transfer speed bandwidth. Unfortunately, this is one of the more expensive 60GB SF1200 SSDs on the market. Although newer SSDs coming to market are expected to be compliant with 3rd-generation SATA 6Gb/s standards, G.Skill's Phoenix Pro produced 286/273 MBps read and write speeds fast enough push the envelope of second-generation SATA-3Gb/s performance. Like other brands, G.Skill has made a wise decision to partner with SandForce, but the three-year G.Skill product warranty is less than others in the industry.

In summary, the G.Skill Phoenix Pro has proven itself to be the fastest SandForce-based SSD we've tested up to this point, with IOPS performance leading the pack. The G.Skill Phoenix Pro easily outperforms all other previous Multi-Layer Cell (MLC) SSDs, and competes head-on with Enterprise-level MLC storage solutions, but all of this comes at a premium. G.Skill offers the Phoenix Pro in 60/120/240GB capacities, and all kits come with a 2.5" into 3.5" converter tray. For high-performance PC hardware enthusiasts and hardcore gamers, the G.Skill Phoenix Pro offers great speed and performance, but the market is filled with identical products with more attractive pricing and longer product warranty period.

Pros:

+ Outstanding 286/273 MBps read/write speed with ATTO
+ SandForce SF-1200 processor supports TRIM, SMART, and RAISE
+ DuraWrite technology extends NAND lifetime
+ Top-level enthusiast operational I/O performance
+ 3-Year G.Skill limited product warranty
+ 60/120/240GB high-speed SSD storage capacity
+ AES-128 Automatic encryption and password data protection
+ Lightweight compact storage solution
+ Resistant to extreme shock impact
+ Low power consumption may extend battery life

Cons:

- More expensive than other similar products
- Lacks integrated USB Mini-B data connection
- Not 3rd-Generation SATA-6.0 compliant

Ratings:

• Performance: 9.75
• Appearance: 9.00
• Construction: 9.50
• Functionality: 9.50
• Value: 7.00

Final Score: 8.95 out of 10.

Quality Recognition: Benchmark Reviews Silver Tachometer Award.

Benchmark Reviews invites you to leave constructive feedback below, or ask questions in our Discussion Forum.

Related Articles:

• Acer Iconia 6120 Dual-Screen Laptop
• CM Storm Scout 2 Gaming PC Case
• OCZ Virtualized Controller Architecture 2.0
• Noctua NH-U12P Heatpipe CPU Cooler
• Cooler Master CM690-II Advanced RC-692-KKN2
• Intel Core i7-870 Processor BX80605I7870
• ASUS Radeon EAH5870 V2 Video Card
• G.Skill Titan 128GB SATA SSD FM-25S2S-128GBT1
• Kingston KHX13000D3LLK2/2G PC3-13000 DDR3 1625MHz
• SPEEDLINK KUDOS RS Gaming Mouse
